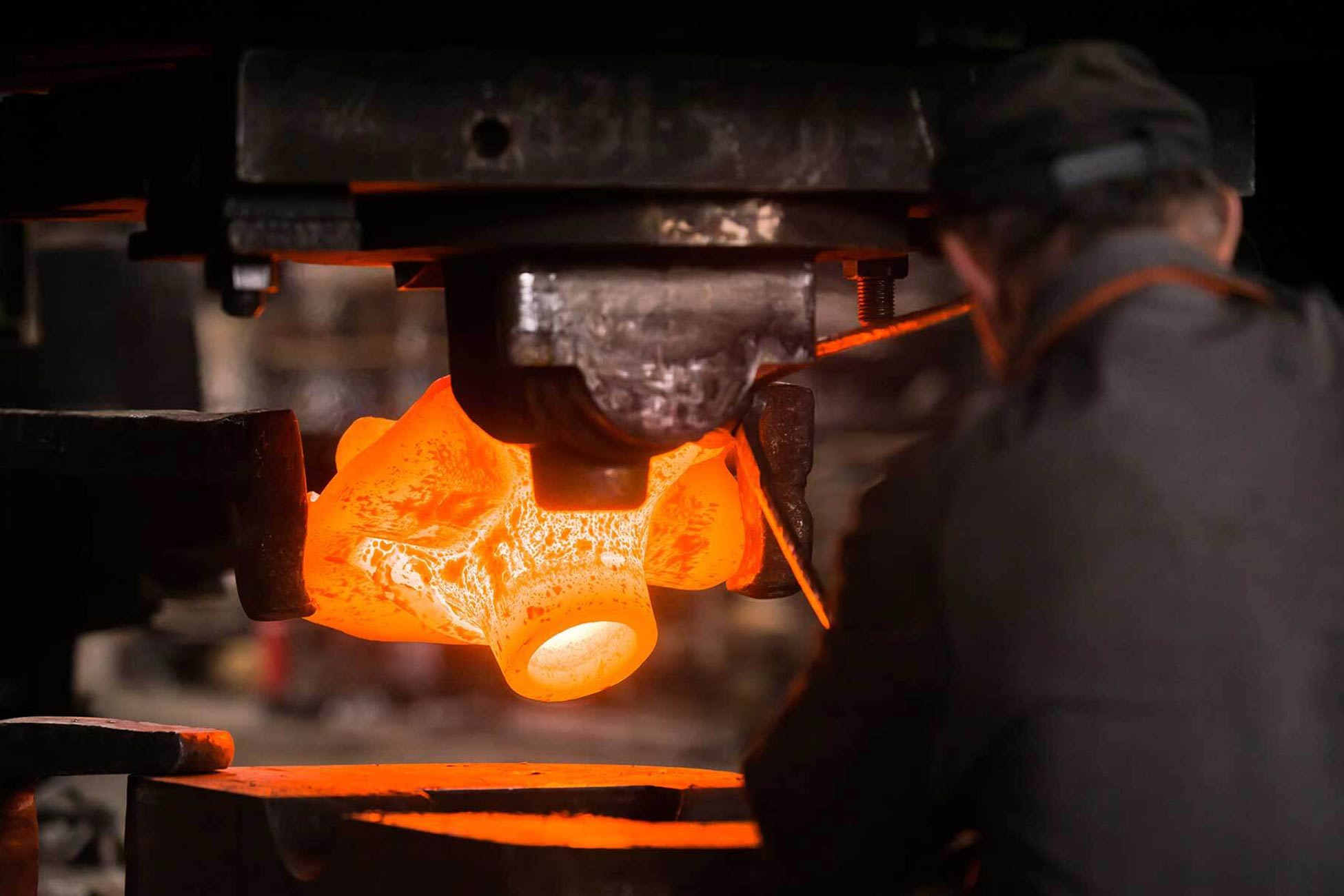

Open Die Forging

Smith forging is another name for open-die forging. On a stationary anvil, a metal is struck with a hammer and bent. The metal can flow throughout the process of forging like manner, with the exception of the locations where it comes into contact with the dies.

The metal must be oriented and placed by the operator to take the final shape they want. Flat dies are employed, some of which have surfaces that have been particularly designed for certain processes. Simple, massive, and unique metal products can all be produced with open-die forging.

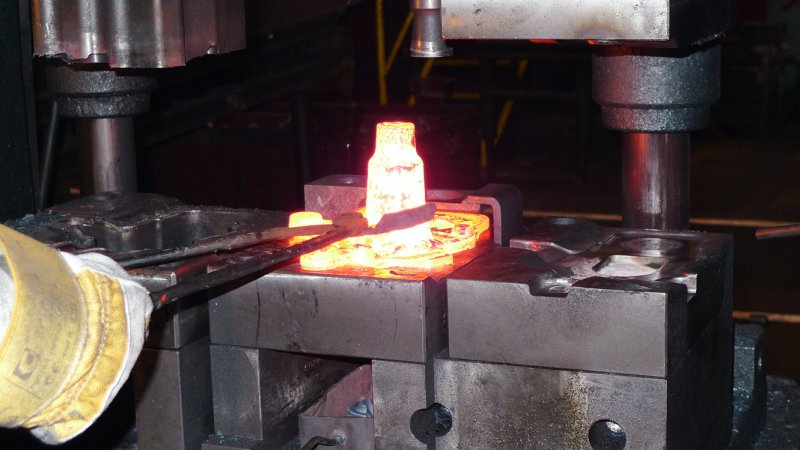

Closed Die Forging / Impression Die Forging

Impression die forging is another name for closed-die forging. The metal is put into a die, which is then fastened to an anvil. The metal flows and fills the die cavities as a result of the hammer being dropped onto it.

On a millisecond time scale, the hammer is timed to strike the metal multiple times in rapid succession. A flash occurs as extra metal is forced from the die cavities. The flash is stronger than the metal in the die because it cools more quickly than the remainder of the material. Afterwards, the flash is eliminated.

The metal must pass through a sequence of cavities in a die in order to reach the last stage:

• The initial impression used to shape the metal into a rough shape is the edging impression, sometimes referred to as fullering or bending.
• Blocking cavities: The metal is shaped to resemble the final product more closely. Generous bends and fillets are used to form the metal.
• Final impression cavity: The metal has been finished and detailed to the appropriate shape in this point.

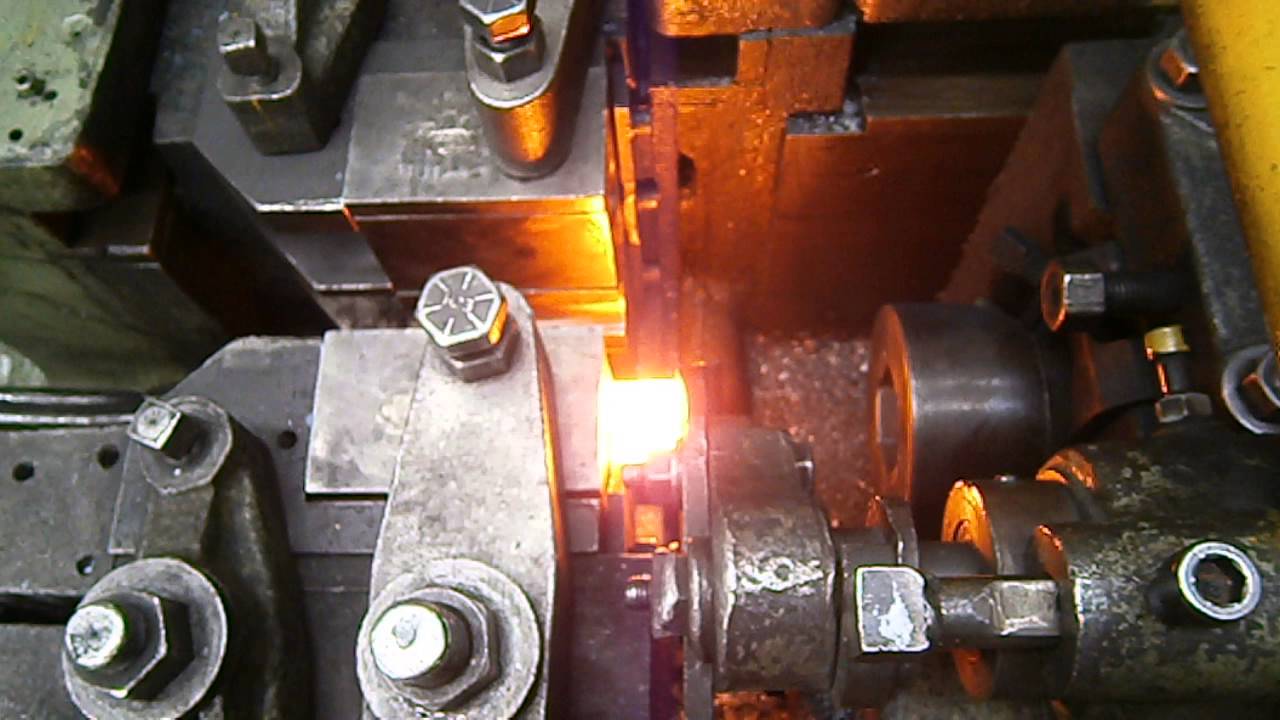

Upset Forging

By compressing the length of the metal during the manufacturing process known as upset forging, the diameter of the metal is increased. In upset forging procedures, unique high-speed machinery called crank presses are used.

To increase efficiency and facilitate the swift transfer of metal from one station to the next, crank presses are often mounted on a horizontal plane. Alternatives include hydraulic presses or vertical crank presses. A few examples of common parts produced using the upset forging process are engine valves, couplings, bolts, screws, and other fasteners
